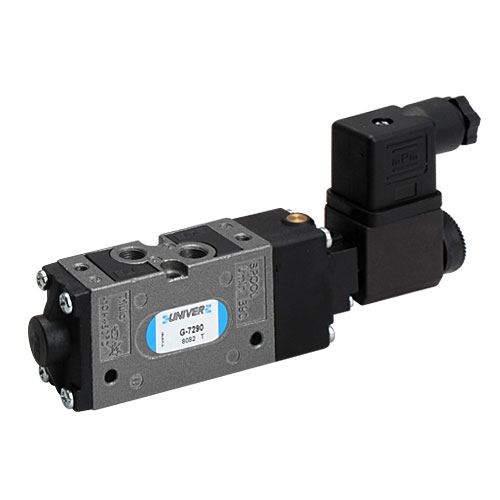

Series G7
26 mm G1/8 valves and solenoid valves
G7
Browse catalogue Browse catalogue
Catalogue Download G7 Catalogue Download

2D-3D CAD G7 2D-3D CAD

TECHNICAL CHARACTERISTICS
Ambient temperature (°C) -10 ÷ +45
Fluid temperature (°C) Max +50
Fluid 50 µm filtered and not dehumidified air, lubricated or not
Commutation system spool system
Ways/Positions 5/2, 5/3
Pressure (bar) Max 10
Control indirect electro-pneumatic, pneumatic
Return mechanical spring, pneumomechanical spring
Connections G1/8
Nominal diameter (mm) 6
Nominal flow rate (Nl/min) 860
